We cherish every inch of valuable resources available,
Scientific and rational industrial layout design, covers an area of smaller,
more powerful.Let every place has a profound meaning.
■Station, change - the traditional pipeline perplexing low space utilization.
■In the space layout is compact and reasonable, make every reasonable existence.

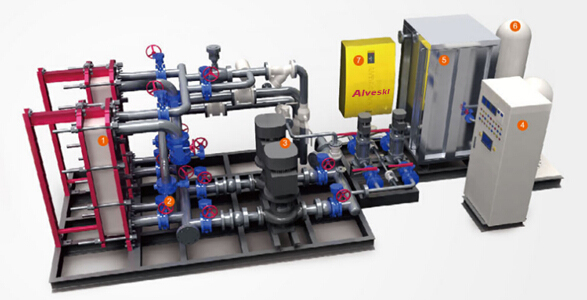

1 Alves heat exchanger 5 Tank
2 High precision valve 6 Water softener
3 High quality pumps 7 Vacuum degassing machine
4 Intelligent control cabinet
Note: the typical configuration of the device, the specific configuration according to customer needs design.

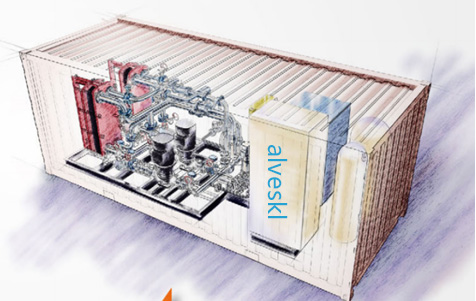

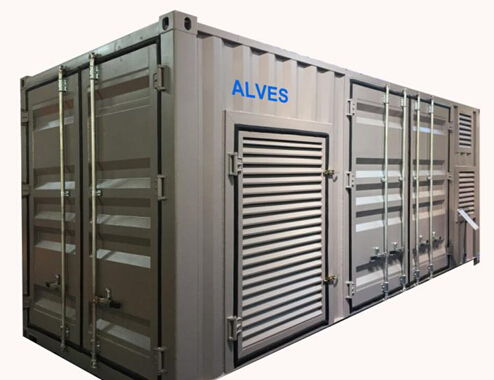

Unique and innovative design of Alves cube unit, make the installation more convenient and simple, simplify, will only be set in cube heating station, connecting circulation pipeline, water supply and drainage facilities, power supply facilities can be used.

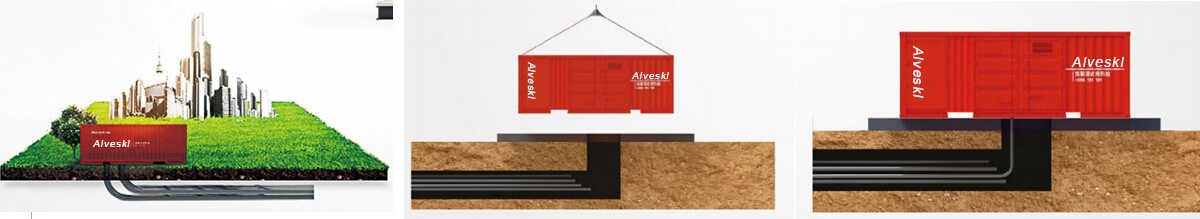

■- No need of civil engineering construction, construction without proprietary heat room. Outdoor installation, installation convenient and quick.
■- No exposed connection lines, harmony with the environment.
■- Lighting, antifreeze, anti snow, anti overheating device integrated with.
Customized unique charm. We can according to your different heating requirements, according to user requirements and changes in the system, you can easily change the installation location.
■In the system according to user requirements and changes, and it is very convenient for the whole mobile, replacing or upgrading.
■In the installation position can be arbitrary, without heat real trouble.
Alves cube unit than you think is more powerful. Here, we have enough. We have all the functions required for heat exchanger station, heat exchanger at.
■Local and remote circulating pump, water pump, electric control valve and other equipment of the automatic and manual control;
■Control a net electric regulating valve
Automatic: climate compensation control, according to the outdoor temperature, automatically adjust the valve position of the first side of the electric control valve to achieve on-demand supply;
Manual: manually open or close the valve, and can manually set the valve position;
■In the control of circulating pump
Automatic: constant pressure frequency control, with external pressure changes, circulating pump variable frequency automatic adjustment;
Manual: manual start or stop circulation pump, and can be manually given a certain frequency operation;
■Water pump control.
Automatic: according to the two backwater pressure, frequency conversion automatic constant pressure water supply;
Manual: manual start or stop water pump, and can be manually given a certain frequency operation;
■Overpressure automatic drainage system, manual release control;
■In the protection of water supplying pump
When the water level is lower than the set value, the system alarm, lower than the critical value, the water pump to stop running, to achieve the protection of the water pump;
■Protection - circulating pump
When the two pressure is lower than the set value, the system alarm, lower than the critical value, the circulation pump automatically stops running, to achieve the protection of the circulating pump;
■Antifreeze, anti snow, anti overheating protection
The water tank antifreezing heating device, pipe freezing protection, without opening the box at the top, side integrated ventilation fan;
Appreciate the sense of technology. The automatic control of the central controller and the controller is provided with the unit cube unit, data transmitted to the remote control room, unattended, save manpower.
Automatic switching of standby system, equipment operation environment control, remote state call, remote alarm, anti freezing and anti pressure, etc..
